Product Overview

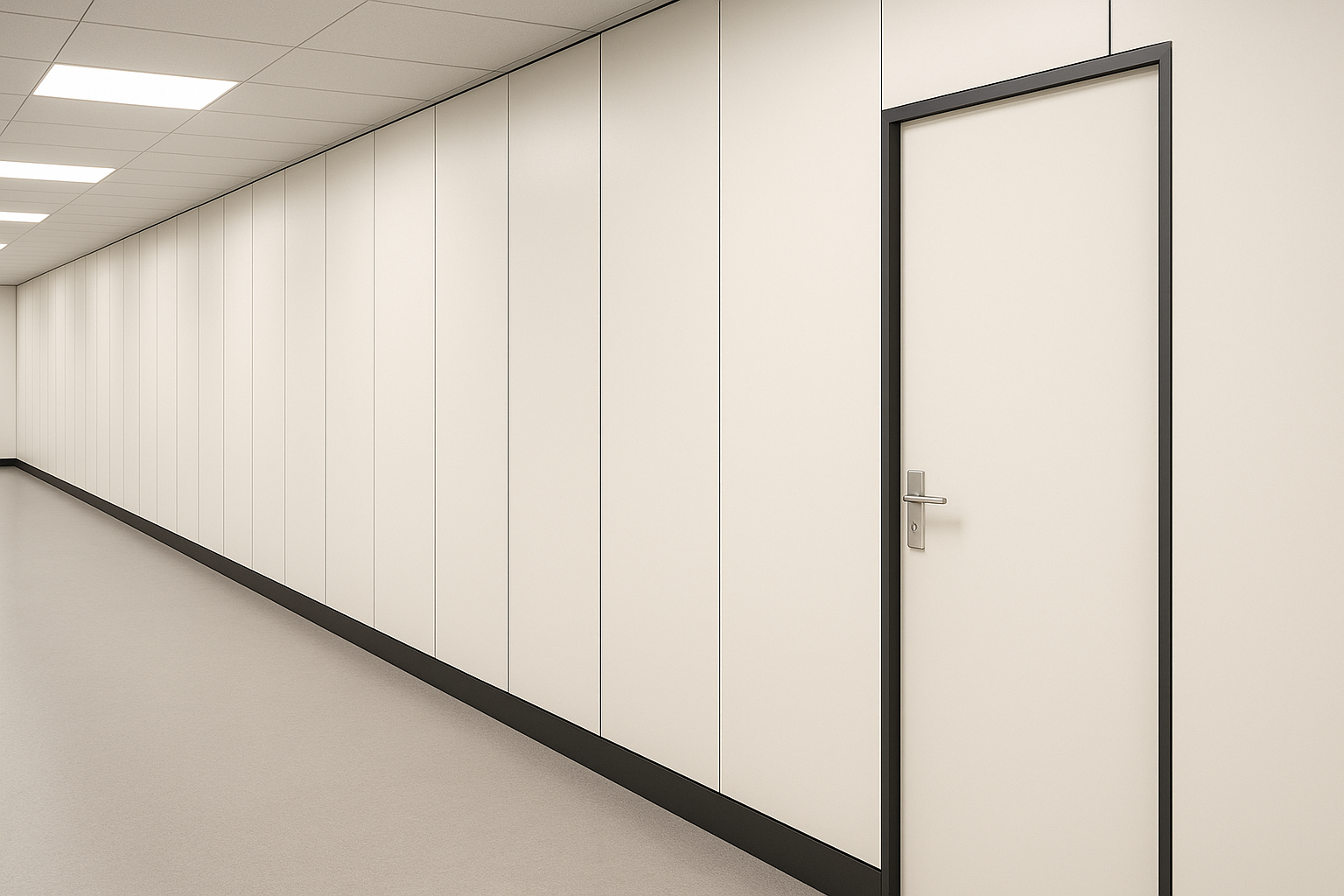

The 5mm Black Groove Steel Wall Panel System is an engineered modular interior wall system designed for industrial and commercial applications. It features galvanized steel composite panels installed on a concealed keel clip-on structure. The panels form a uniform 5mm shadow groove joint, creating strong linear architectural aesthetics. Each panel can be independently installed and removed, providing easy access for electrical maintenance, piping upgrades, or hidden system adjustments without dismantling the entire wall. This system delivers superior durability, precision installation, and a clean, professional appearance.
1. Product Specifications
| Item | Specification |
|---|---|
| Total Thickness | 12.5–13mm |
| Surface Material | Galvanized steel sheet 0.8–1.0mm (optional stainless steel or aluminum) |
| Core Material | 12mm gypsum-based board / fire-resistant calcium silicate board (optional) |
| Surface Finish | Electrostatic powder coating / antibacterial coating / PVC laminated surface |
| Standard Width | 1185mm (custom sizes available) |
| Height Options | 2.4m – 3.2m (custom height fabrication available) |
| Installation Method | Clip-on concealed keel system |

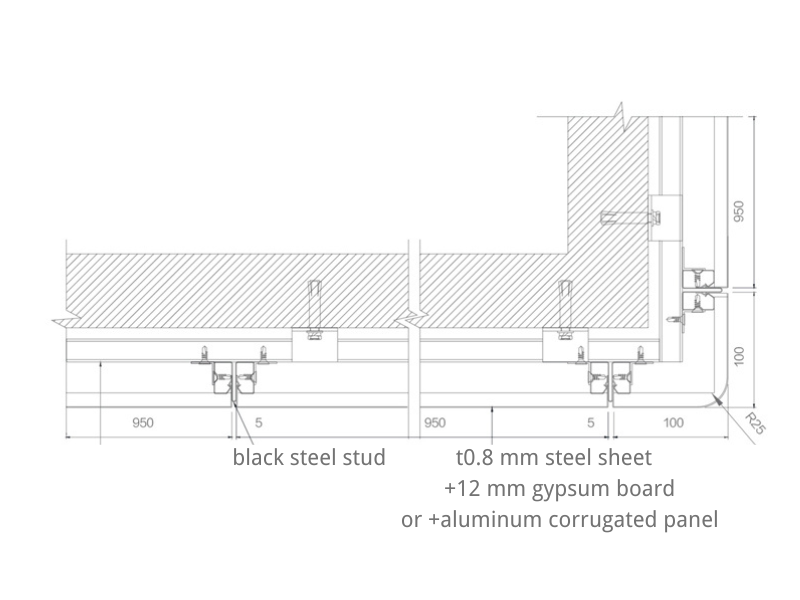

| Joint Type | 5mm shadow groove (black joint effect) |
| Keel Structure | Galvanized steel keel |
| Construction Method | Dry assembly modular installation |
| Optional Accessories | Inner/outer corner trims, skirting lines, access panels, wiring module openings |
2. Product Advantages
✅ 5mm Architectural Shadow Groove Design
Consistent panel gaps form decorative black lines, creating a modern industrial and linear visual effect.
✅ Independent Detachable Panel Design
Each panel is removable individually without affecting adjacent panels—ideal for system maintenance and upgrades.

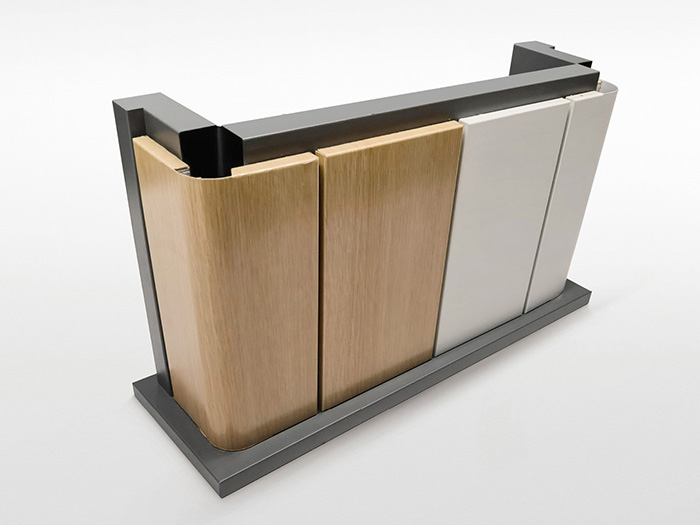

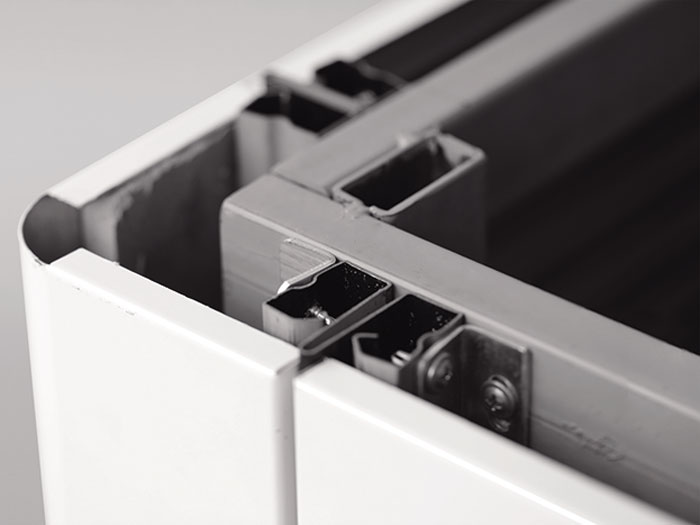

✅ Clip-On Mechanical Locking System
Hidden keel connection ensures fast installation with precise alignment and no visible screws.
✅ High Strength Steel Surface
0.8–1.0mm galvanized steel surface provides excellent impact resistance and long-term structural stability.
✅ Modular Function Integration

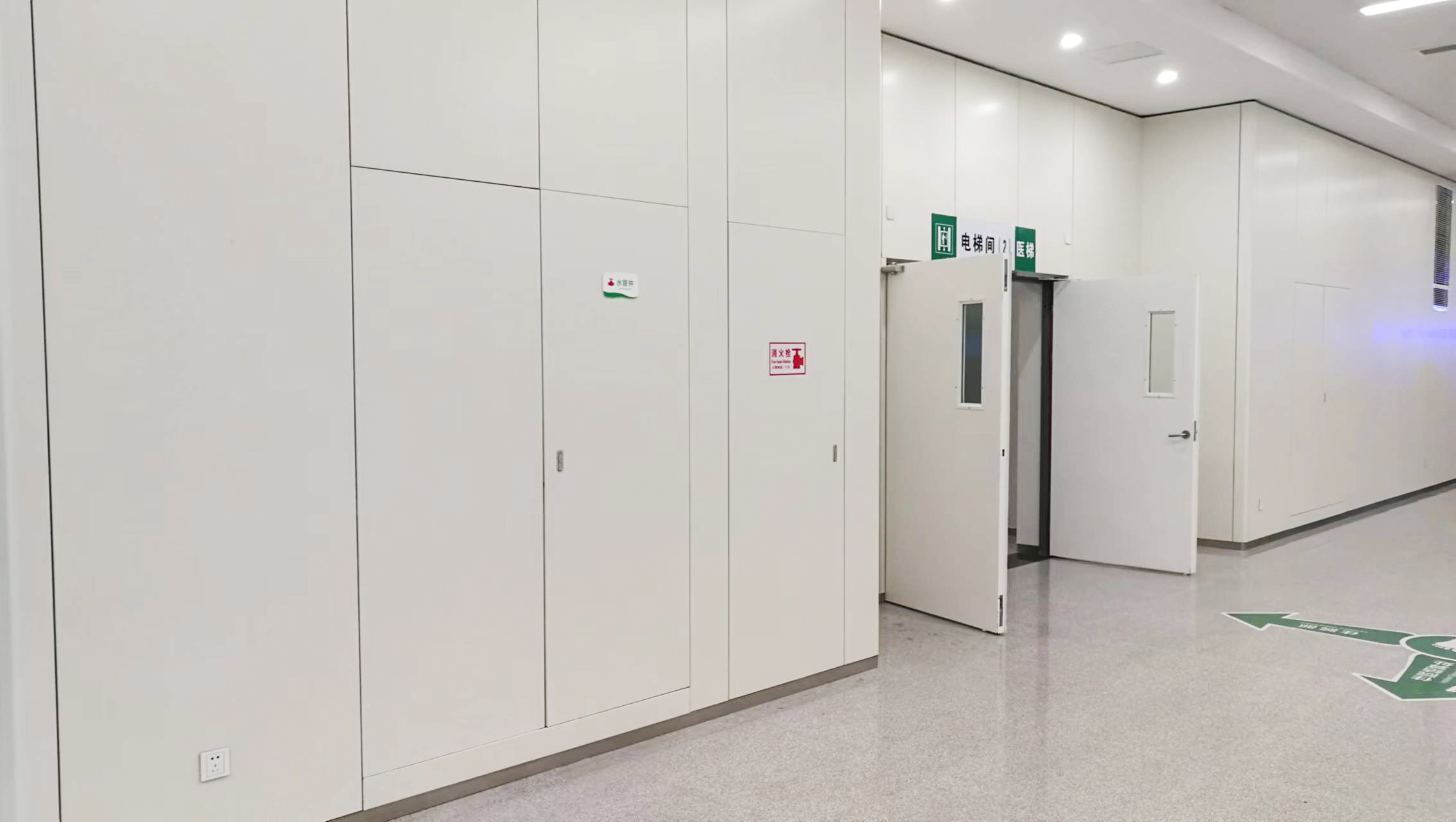

Supports customized openings for sockets, control interfaces, inspection hatches, and equipment access.
✅ Easy to Clean and Maintain
Optional antibacterial powder coating makes it suitable for hygienic environments and frequent cleaning.
3. Application Areas
-

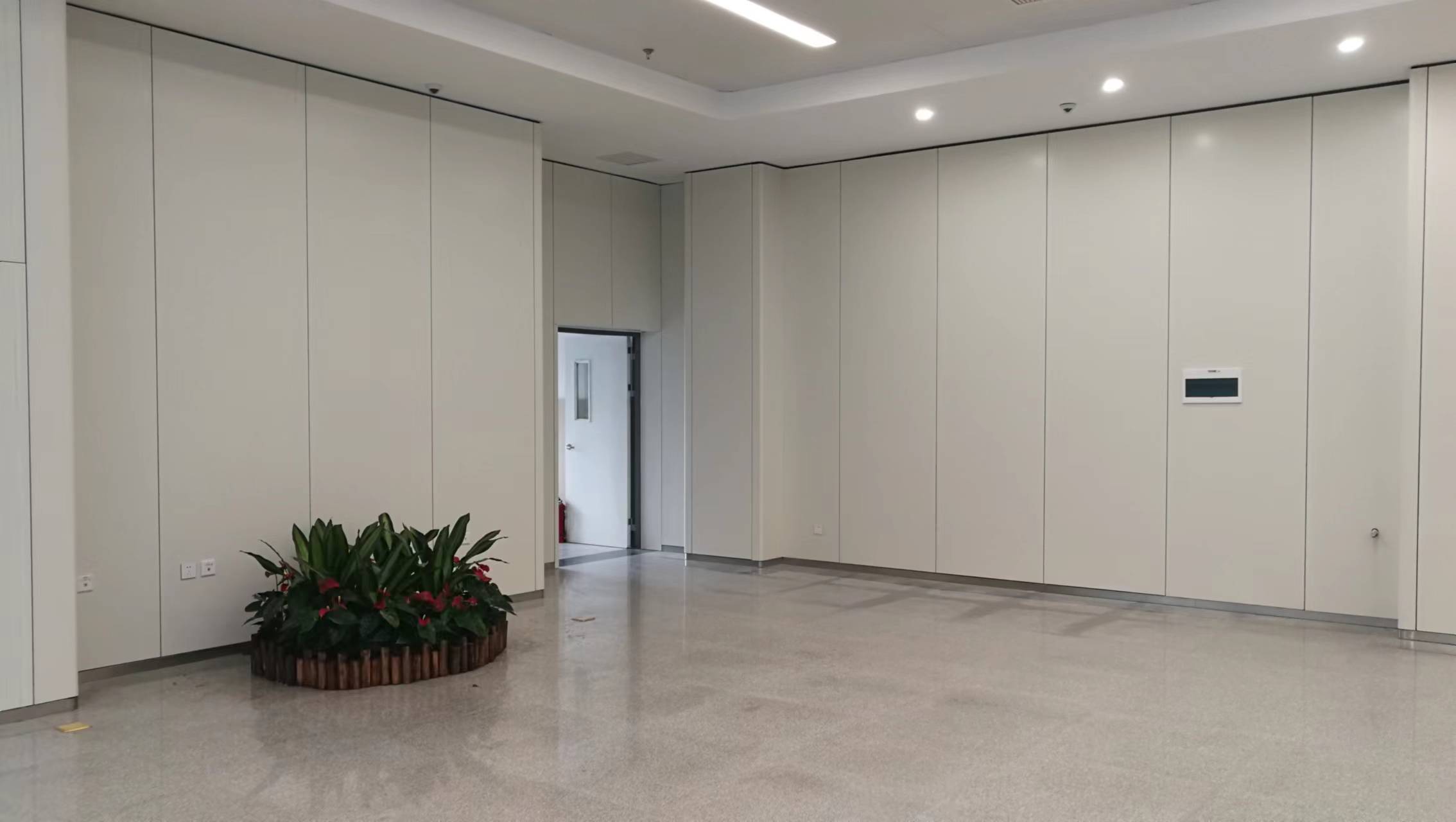

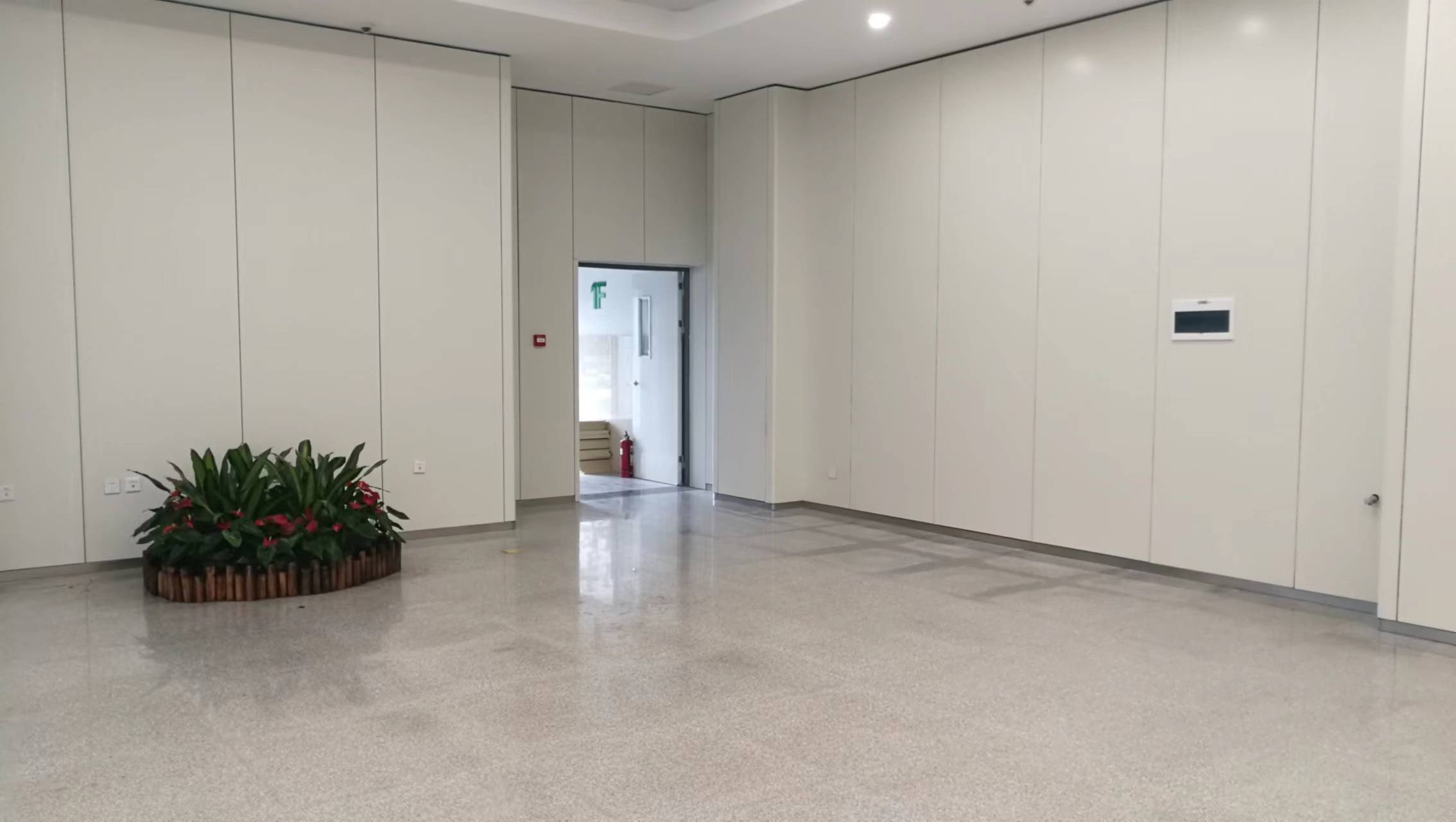

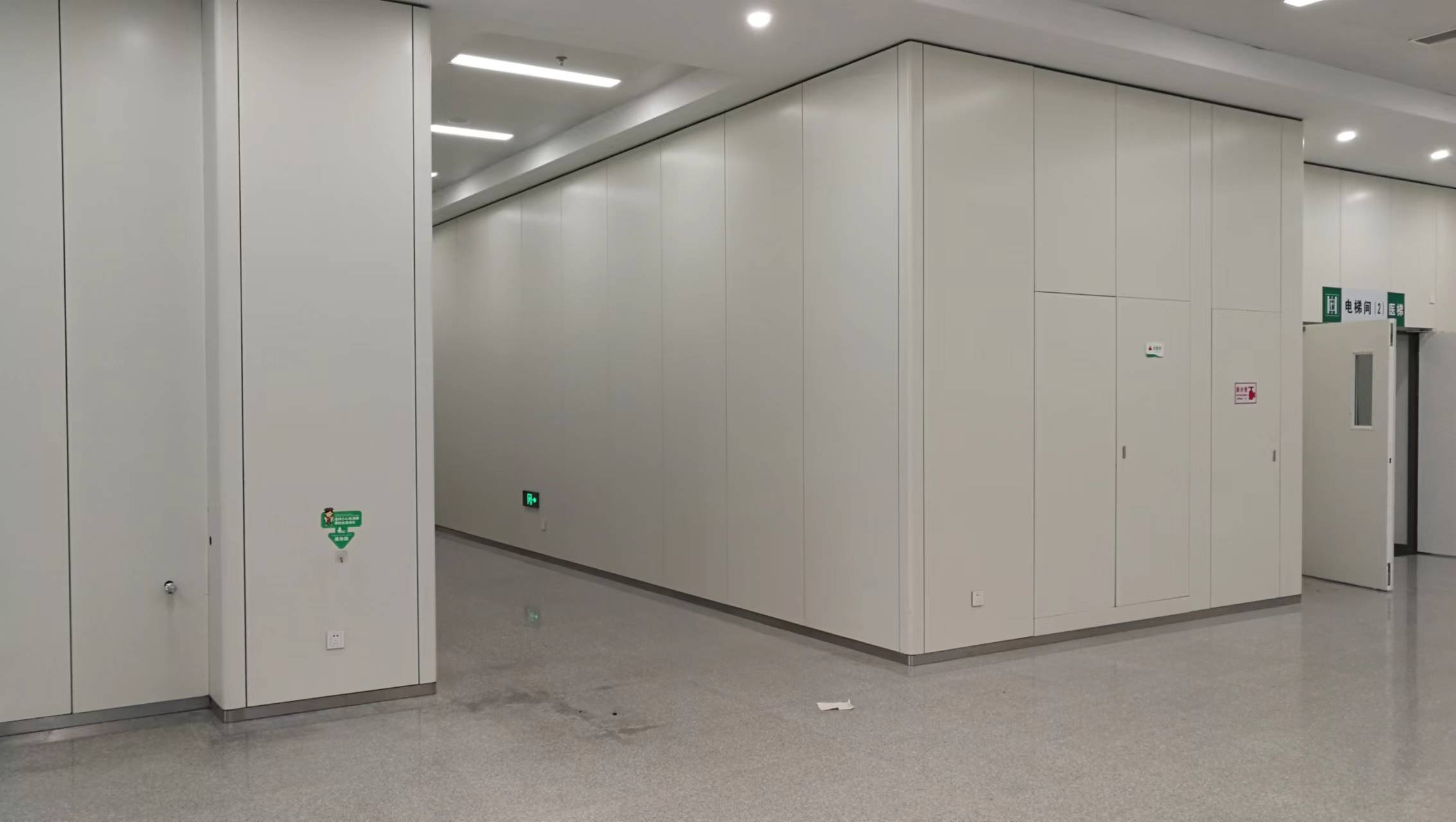

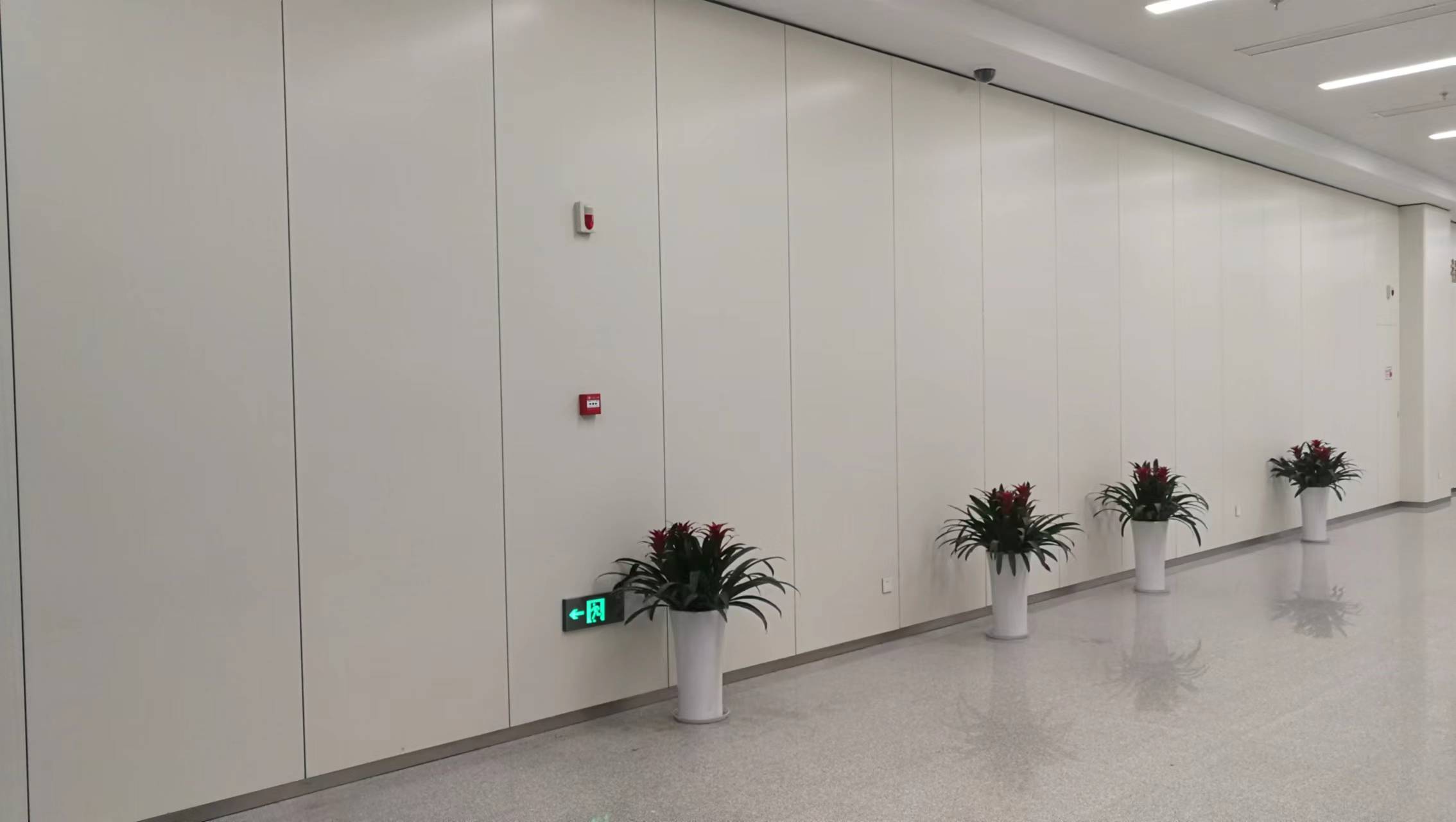

Hospital corridors and medical equipment wall systems
-
Pharmaceutical and cleanroom support areas
-
Industrial manufacturing workshops and control rooms
-
Electrical control rooms and mechanical equipment spaces
-
Data centers and modular IT infrastructure environments
-
Airports, schools, transportation hubs, and public projects
