Double-Leaf & Unequal Double-Leaf Radiation Shielding Swing Door

Product Overview

The double-leaf and unequal double-leaf X-ray radiation shielding swing doors are designed for wider passages in medical imaging, radiotherapy, nuclear medicine, and interventional treatment departments. They provide the same high-level shielding performance while allowing easier access for stretchers, equipment, and staff. The door leaves adopt an interlocking panel structure with no edge covers, welding points, or exposed screws, ensuring durability, aesthetics, and easy maintenance.

Product Features

• Door Leaf Steel Plate Thickness: T0.8 mm galvanized steel or stainless steel

• Door Frame Steel Plate Thickness: T1.6 mm galvanized steel or stainless steel

• Internal Core: High-strength fire-resistant honeycomb paper board

• Shielding Material: 99.9% pure lead plate, configurable with 2–8 lead equivalents according to protection requirements

• Door Leaf Thickness: T50 mm

• Sealing System: Frame grooves fitted with high-elastic silicone sealing strips for excellent airtightness

• Hinges: Heavy-duty stainless steel hinges or floor pivots for stable, long-lasting operation

• Acoustic Insulation: Rw = 45 dB (complies with GB/T 8485-2008)

• Impact Resistance: Complies with GB/T 20909-2007

• Surface Finish: High-voltage electrostatic powder coating or stainless steel finish

• Optional Vision Panel: Lead glass observation window

• Opening Mode: Manual / Automatic

Product Functions

• Provides strong radiation shielding with large opening for equipment and patient transfer

• Modern interlocking panel design with no exposed screws or welding marks

• Excellent airtightness, sound insulation, fire resistance, and impact resistance

Applications

• X-ray rooms

• Medical imaging departments

• Radiotherapy units

• Nuclear medicine departments

• Interventional treatment rooms

Product Types

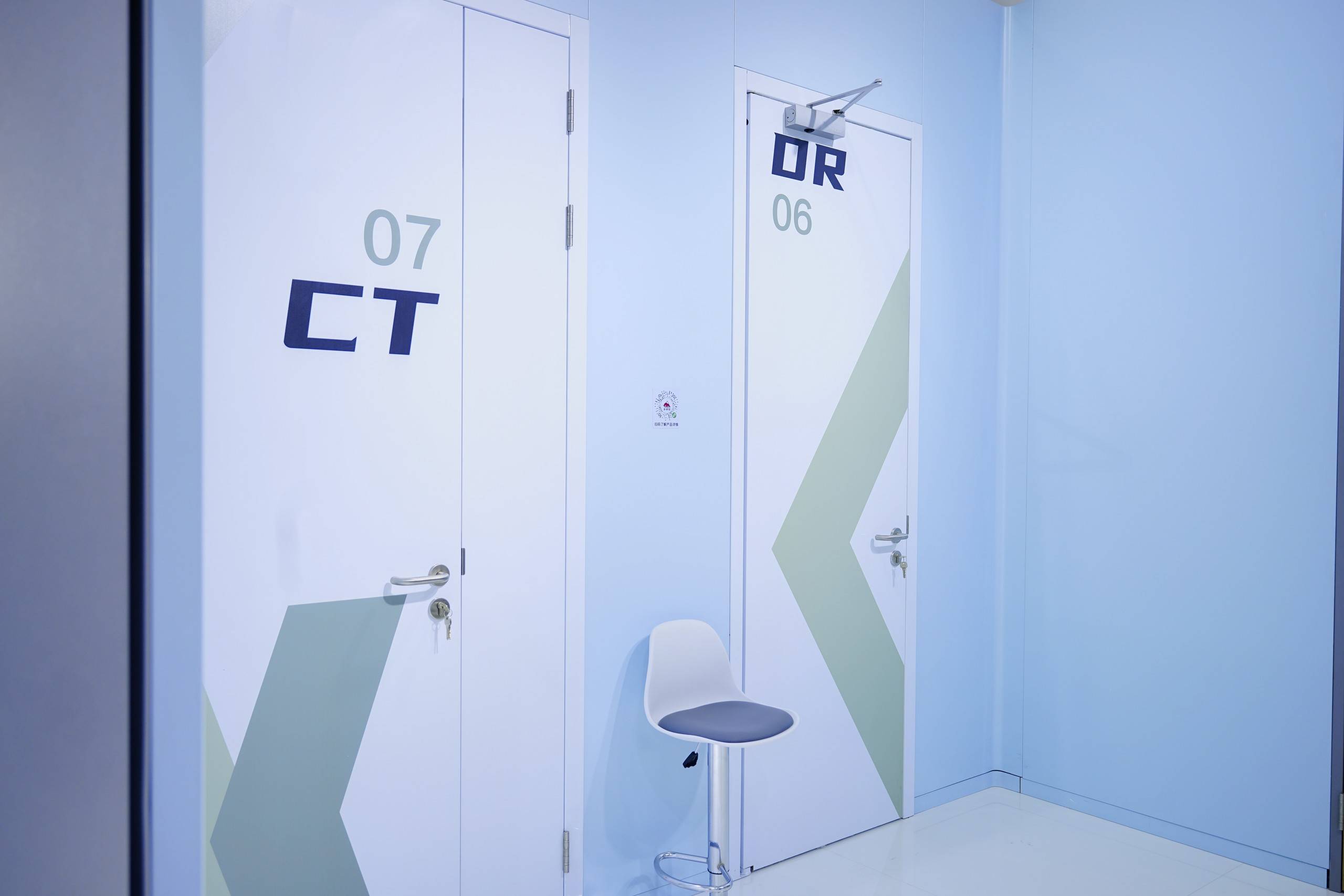

• Double-Leaf Swing Door

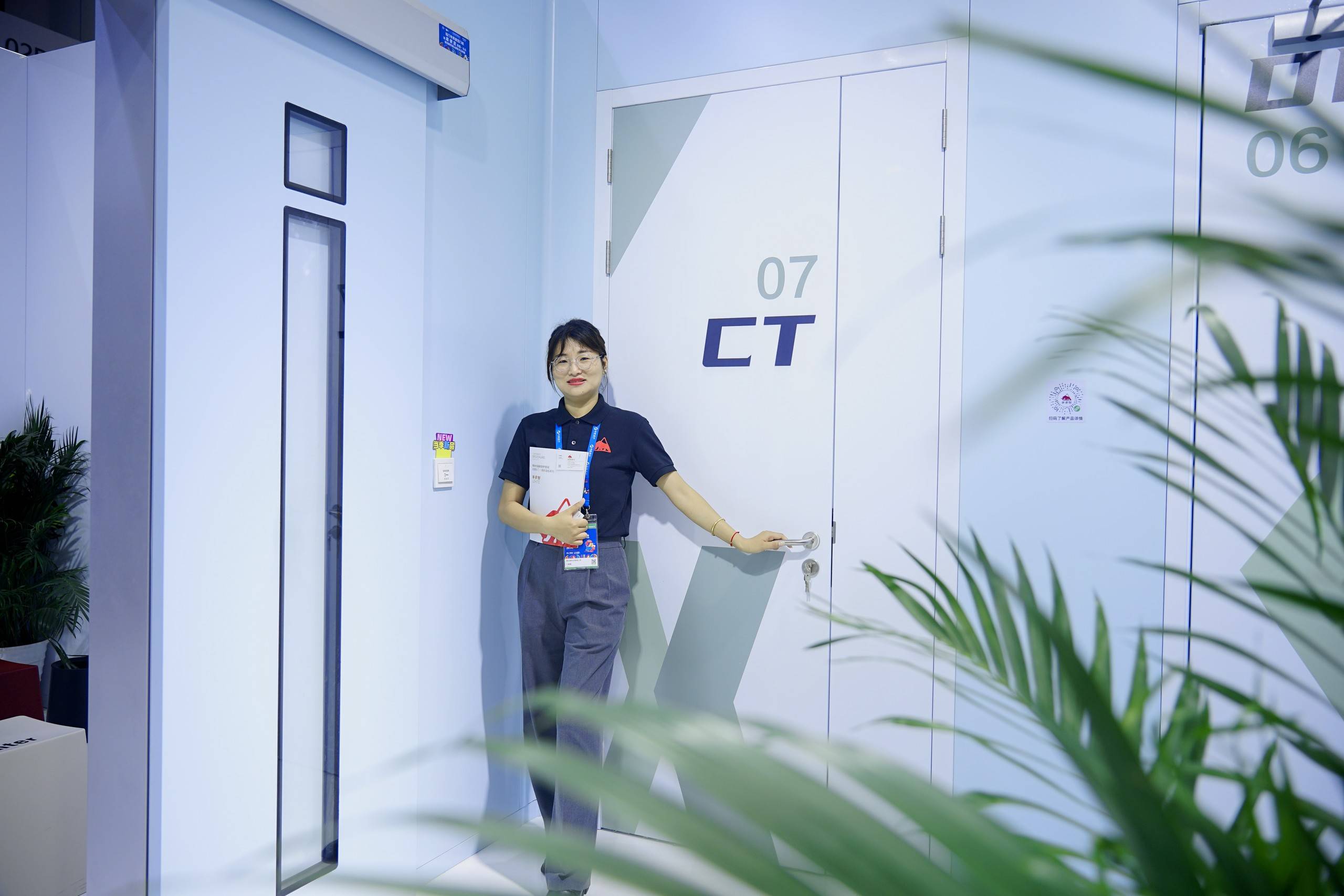

• Unequal Double-Leaf Swing Door (Side Panel)
