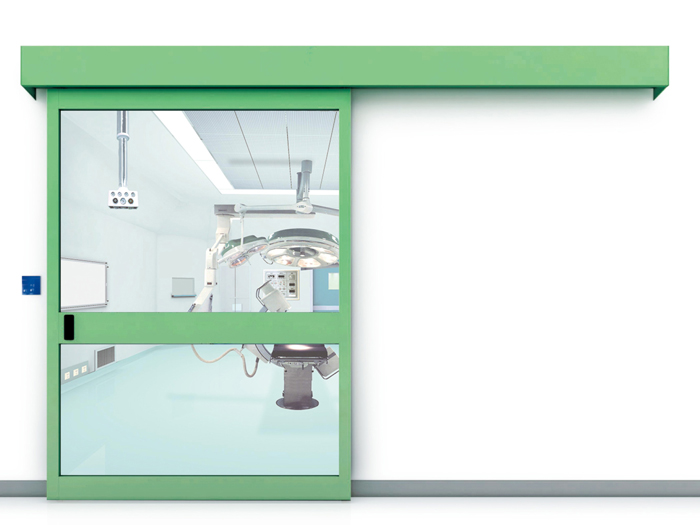

DQB-165 Glass Hermetic Automatic Sliding Door

Product Features

• Glass Door Leaf with Premium Frame: The door leaf is constructed from large flat high-strength glass. The door frame is made of aluminum alloy with electrostatic powder coating, or wrapped in stainless steel for enhanced durability. The transparent design allows medical staff to conveniently observe patients’ conditions.

• Smooth & Quiet Operation: Provides light, stable, and silent movement with a clean and modern appearance.

• Application-Specific Use: Ideal for areas with low traffic and quiet environments such as isolation ICUs, premium wards, and laboratories.

• Flexible Control Options: Multiple access modes available, including infrared sensing, foot sensor, hand sensor, and password input, ensuring adaptability to different user needs.

Technical Specifications

• Door Weight:

  • Single door: 1 × 100 kg

  • Double door: 2 × 80 kg

• Clear Opening Width:

  • Single door: 900 – 1500 mm

  • Double door: 1200 – 3350 mm

• Opening Speed: 300 – 600 mm/s (adjustable)

• Closing Speed: 300 – 600 mm/s (adjustable)

• Hold-Open Time: 0 – 9 s (adjustable)

• Sealing Force: > 70 N

• Manual Push Force: < 100 N

• Total Power Consumption: < 180 W

• Airtightness Class: Grade 8
