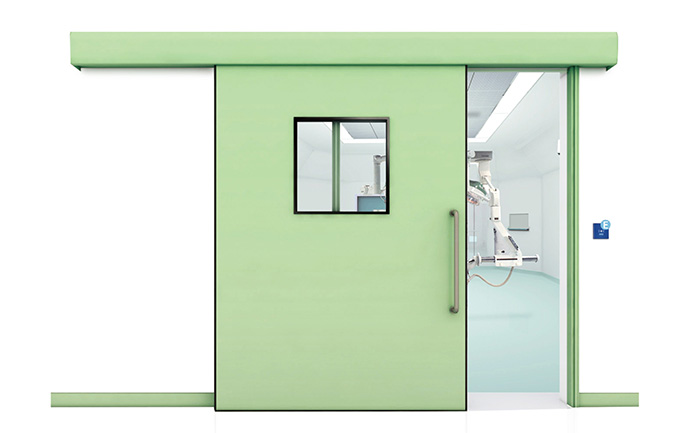

DQM-165S Wall-Mounted Hermetic Automatic Sliding Door

DQM-165S Wall-Mounted Hermetic Automatic Sliding Door is designed to meet the strict requirements of modern hospitals and cleanroom facilities. With its wall-mounted structure, advanced airtight technology, and user-friendly features, it provides a reliable solution for environments requiring controlled cleanliness, temperature, and humidity.

Product Features

• Quick Installation: The externally mounted power beam and door body are directly wall-hung, enabling fast and convenient installation.

• Advanced Sealing Technology: Engineered with a high-tech airtight structure to prevent cross-contamination and enhance cleanliness. Fully compliant with national standard JGT257-2009 and certified to Airtightness Grade 8.

• Optimized Handle Design: A round external handle paired with an internal concealed handle ensures the door leaf can be fully opened, improving functionality and space utilization.

• Smooth & Silent Operation: Guarantees light, stable, and quiet movement with superior indoor-outdoor sound insulation.

• Eco-Friendly & Energy-Saving: The robust, solid door body allows for fast opening/closing, reducing airflow to a minimum. This prevents dust and cold air intrusion while maintaining constant humidity and temperature in critical environments.

• Barrier-Free Design: Humanized accessibility design allows patients, staff, and medical carts to pass safely and conveniently, improving overall hospital efficiency.

Technical Specifications

• Door Weight:

  • Single Door: 1 × 100 kg

  • Double Door: 2 × 80 kg

• Clear Opening Width:

  • Single Door: 900 – 1500 mm

  • Double Door: 1200 – 3350 mm

• Opening Speed: 300 – 600 mm/s (adjustable)

• Closing Speed: 300 – 600 mm/s (adjustable)

• Opening Duration: 0 – 9 s (adjustable)

• Sealing Force: > 70 N

• Manual Push Force: < 100 N

• Total Power Consumption: < 180 W

• Airtightness Class: Grade 8

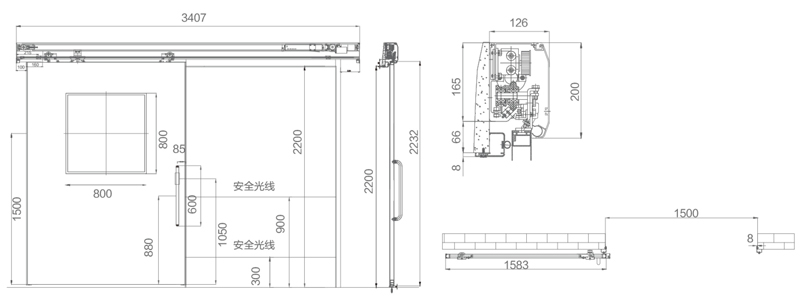

Structure:
