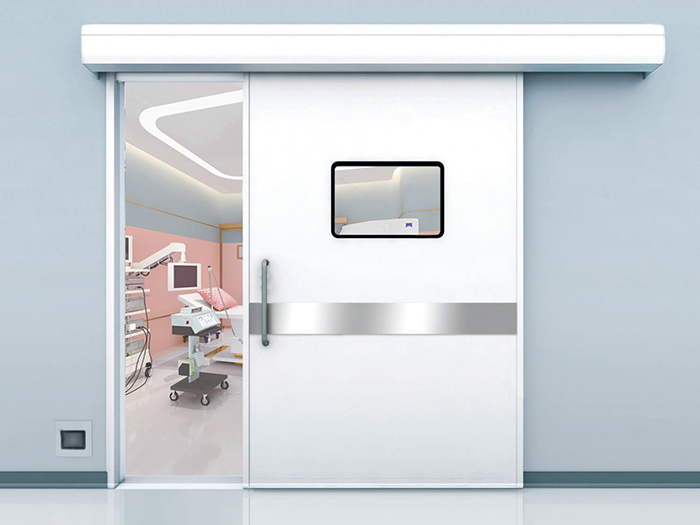

DQM-180 European Standard Hermetic Automatic Sliding Door

Product Features

• High-Performance Motor: Equipped with a German-imported DC motor, ensuring long service life, high efficiency, and maintenance-free operation.

• Easy Installation: The power beam and door body are directly wall-mounted, allowing quick and simple installation. The unique airtight operating structure and compression technology ensure compliance with UGT257-2009 and Class 8 airtightness standards.

• Unique Sinking Mechanism: Features a specialized sinking mode, with a maximum vertical drop of 15 mm and an inward compression of 10 mm, greatly enhancing airtight performance. The overall motion is smooth, quiet, and provides excellent indoor-outdoor sound insulation.

• Eco-Friendly & Energy Saving: The solid and robust door body enables fast opening/closing, minimizes air circulation, prevents cold air and dust infiltration, and maintains constant humidity and temperature in critical environments.

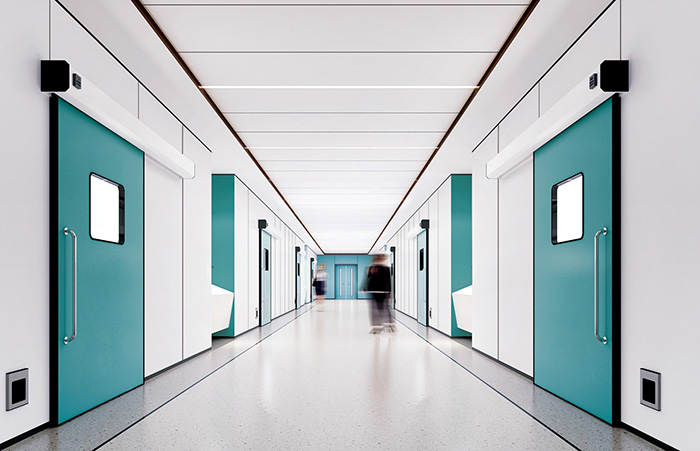

• Applications: Specially designed for operating rooms, cleanrooms, ICUs, and other high-standard medical and laboratory environments requiring airtight performance.

Technical Specifications

• Opening Speed: 100 – 500 mm/s (adjustable)

• Closing Speed: 100 – 400 mm/s (adjustable)

• Opening Duration: 2 – 20 s (adjustable)

• Sealing Force: > 70 N

• Manual Push Force: < 100 N

• Total Power Consumption: < 150 W

• Airtightness Class: Class 8

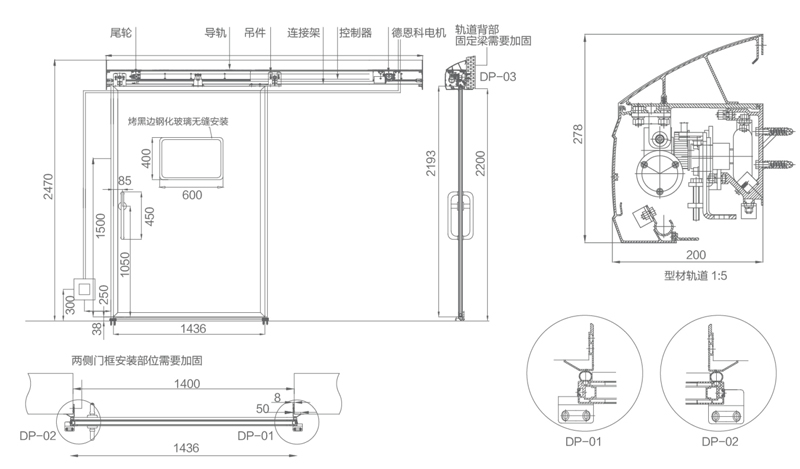

Structure
