Product Description

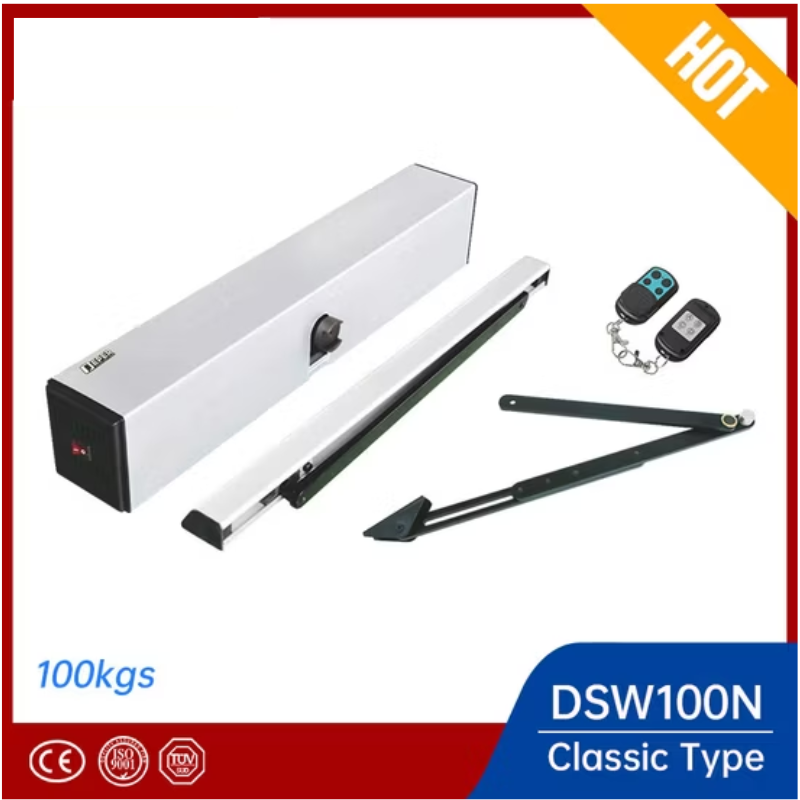

DSW-100N 100KG Remote Control Electric Automatic Swing Door Opener For Access Exit Automation
Product advantages
1、 The DSW-100 drive unit operates with low noise, reliable performance and safe use, providing more convenience for living and working environments.

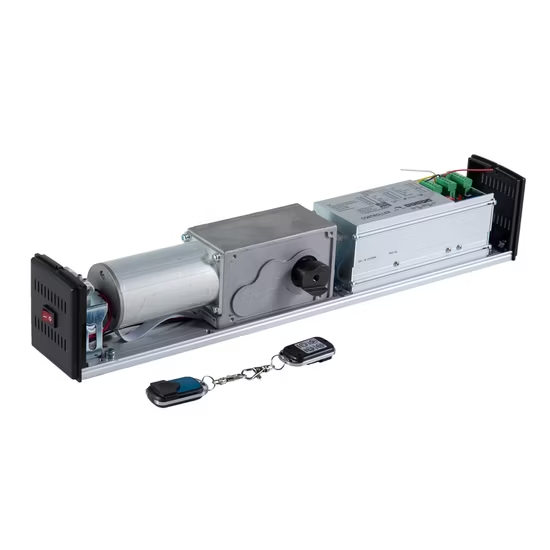

2、The DSW-100N is a new upgraded transformer-less drive that offers a wider range of supply power voltages. Provides interfaces such as sensors, access control, and security sensor protection, and is equipped with interfaces for magnetic electric lock and backup battery too.
3、 UPS power can be configured to meet security requirements.
4、 Both them can realize Interlocking function between door and door.
5、 If touch obstacles or personnel in operation, the door will open in the opposite direction.
6、Applicable to office buildings, storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals and other places.

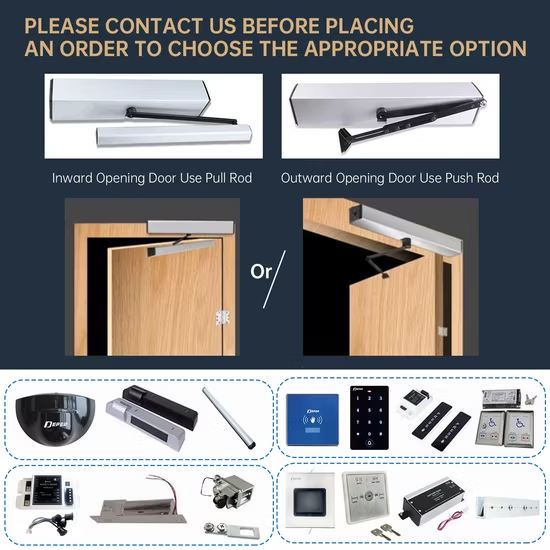

7、 According the door opening direction choose Pull Arm or Push Arm
Left opening & Right opening directions (Both apply)
Optional:Double open or single open
Product advantages1、 The DSW-100 drive unit operates with low noise, reliable performance and safe use, providing more convenience for living and working environments.
2、The DSW-100N is a new upgraded transformer-less drive that offers a wider range of supply power voltages. Provides interfaces such as sensors, access control, and security sensor protection, and is equipped with interfaces for magnetic electric lock and backup battery too.
3、 UPS power can be configured to meet security requirements.
4、 Both them can realize Interlocking function between door and door.
5、 If touch obstacles or personnel in operation, the door will open in the opposite direction.
6、Applicable to office buildings, storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals and other places.
7、 According the door opening direction choose Pull Arm or Push Arm
Left opening & Right opening directions (Both apply)
Optional:Double open or single open
| Technical Data | |
| Product name: | Automatic Swing Door Operator (DSW-100) |
| Door form: | single door |
| Carrying weight: | ≤1 x 100kg |
| Applicable door width: | ≤1200mm |
| Power supply voltage: | AC220V±10%, 50/60Hz |
| Opening time: | 3-7S/90° (adjustable) |
| Open time: | 1-30S (adjustable) |
| Protection level: | IP12D |
| Product weight (unit): | 6.5kg |
| Product size (unit): | 520X95X82mm |
| Product size (unit): | 540X95X82mm |
| Ambient temperature: | -20 ~ +55° |
