Product Advantage
1. The DSW85 is a microprocessor-controlled automatic door closer that is simple in design and self-monitoring.
2. The microprocessor provides precise position control and speed control, resulting in the optimal motion mode to control the movement path of each door.
3. In the event of a power failure, the unit will start closing spring force automatically .

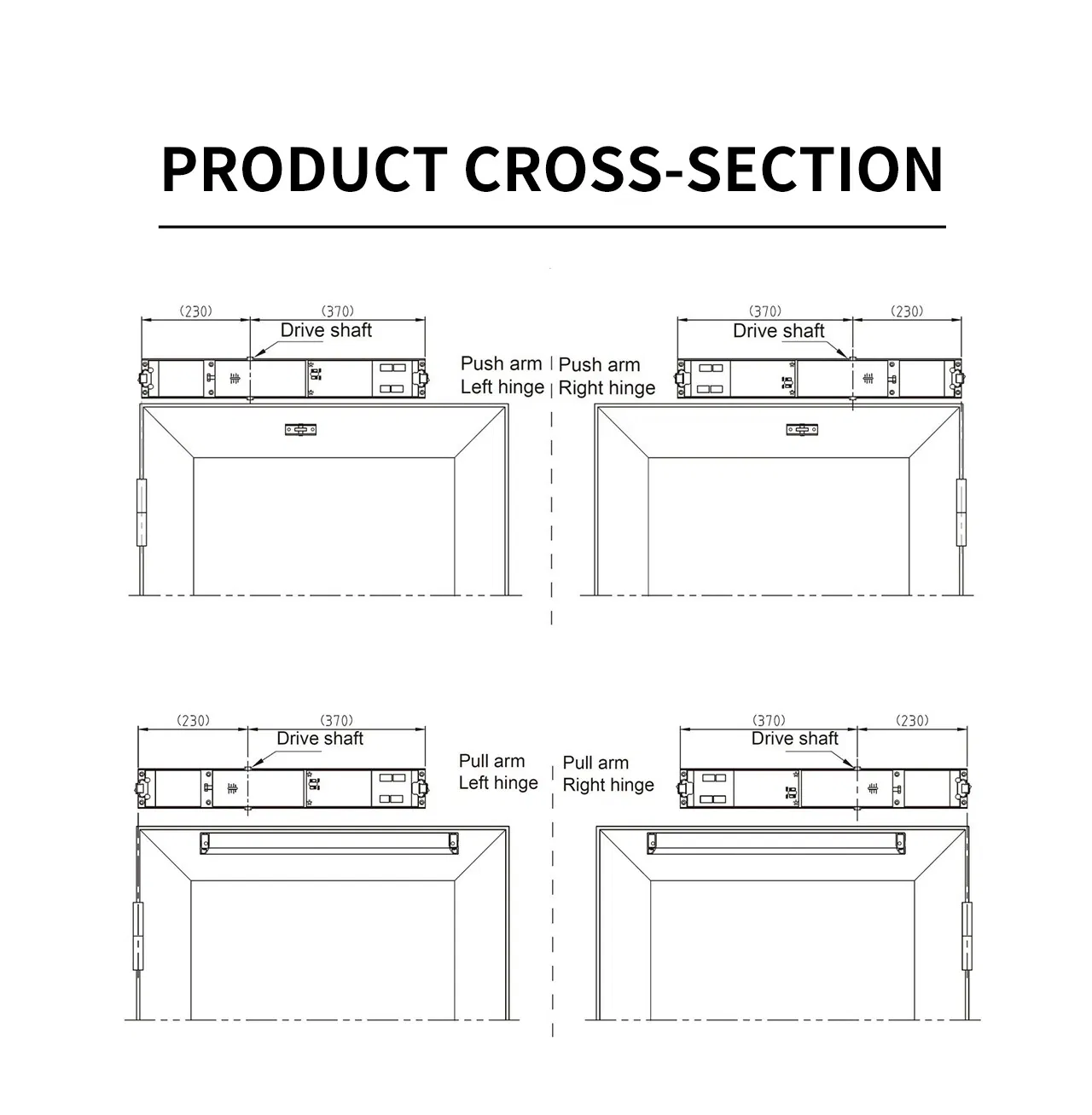

4. Depending on the application, pull-arm and push-arm mounting is available.
5. Particularly suitable for use in conjunction with fire doors.
2. The microprocessor provides precise position control and speed control, resulting in the optimal motion mode to control the movement path of each door.
3. In the event of a power failure, the unit will start closing spring force automatically .
4. Depending on the application, pull-arm and push-arm mounting is available.
5. Particularly suitable for use in conjunction with fire doors.
|

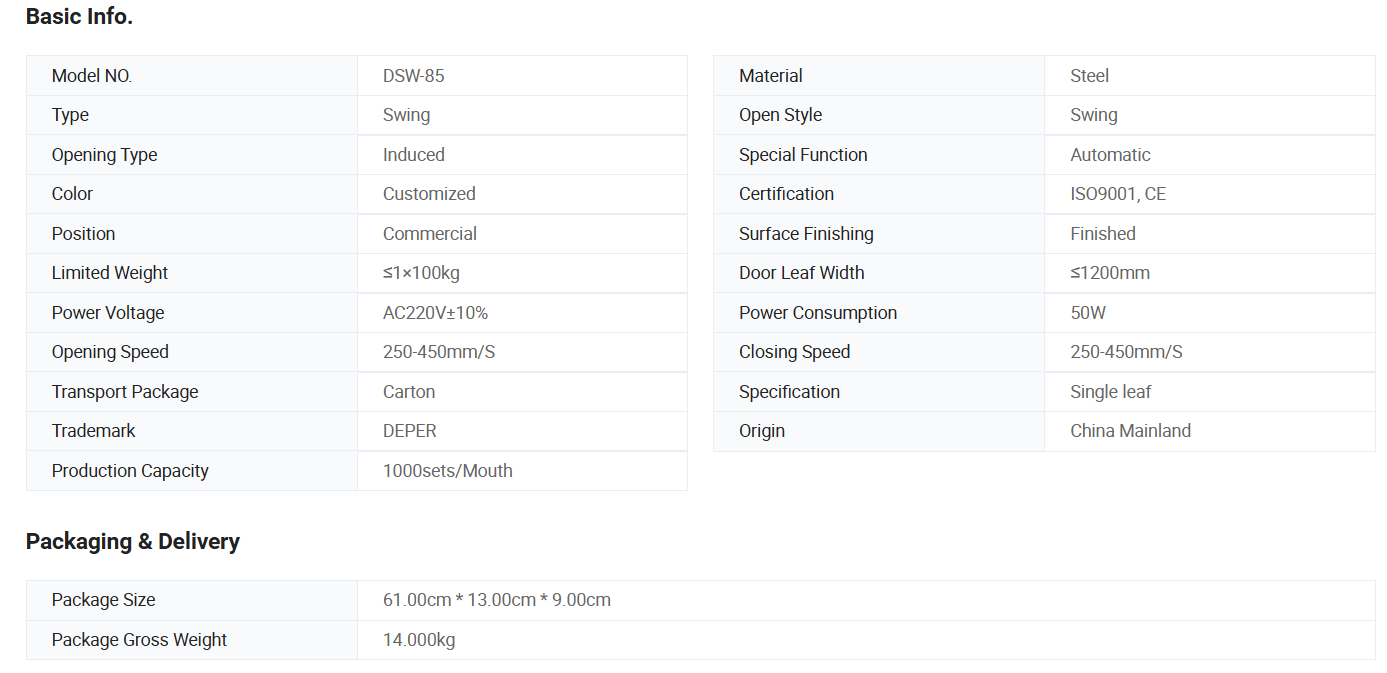

Technical Data
|
|
|
Product name:
|
automatic door closer
|
|
Drive unit:
|
24V DC motor, spring close door
|
|
Anti-extrusion device:
|
standard
|
|
Power supply voltage:
|
AC220V ± 10%, 50/60Hz
|
|
Rated power consumption:
|
100W (MAX)
|
|
Opening time (speed):
|
3-7S adjustable
|
|
Closing time (speed):
|
3-7S adjustable
|
|
Open time:
|
0.5-30S adjustable
|
|
Opening angle:
|
80°-100°
|
|
Drive arm:
|
pull arm, push arm
|
|

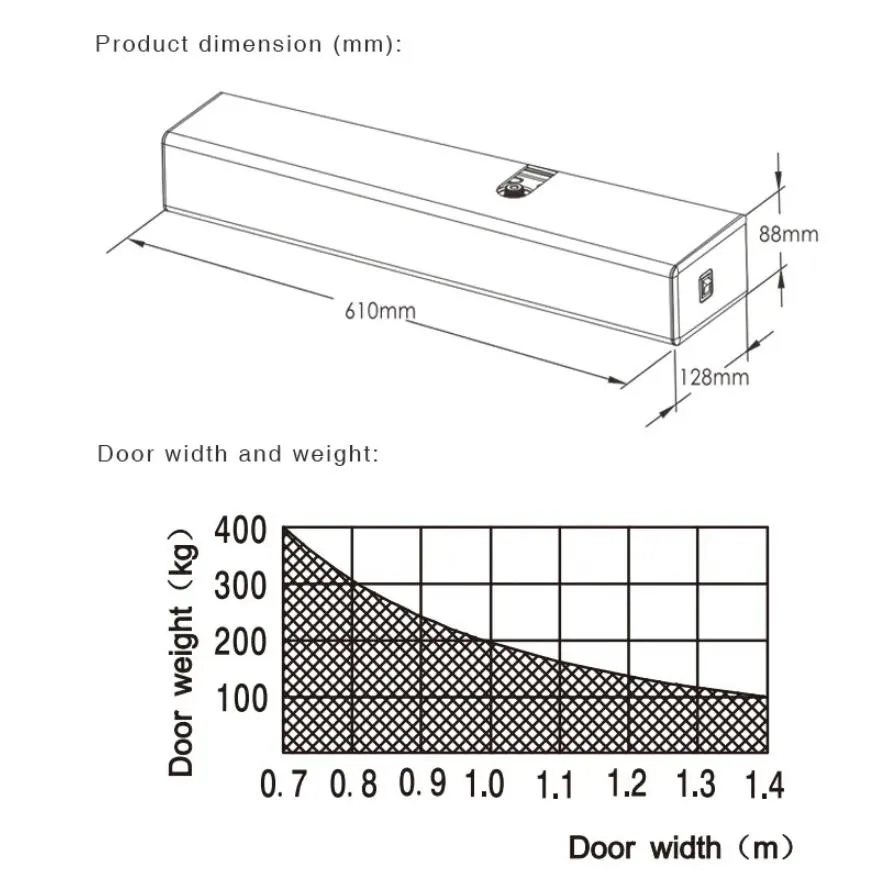

Unit size:
|
610 X128 X88 (mm)
|
|
Ambient temperature:
|
-20 ~ +45°C
|
|
Relative humidity:
|
≤85%
|
