Medical Magnetic Suspension Hermetic Automatic Sliding Steel Door

Product Features

• Magnetic Levitation Drive: Equipped with a magnetic suspension unit for smooth, stable, and ultra-quiet operation, ensuring comfort and reliability.

• Wall-Mounted Installation: The power beam and door body are directly mounted on the wall, enabling quick and convenient installation.

• Advanced Airtight Technology: Designed with high-performance sealing to prevent cross-contamination and improve cleanliness. Fully compliant with national standard JGT257-2009, achieving Airtightness Class 8.

• Ergonomic Handle Design: Features a round external handle and a concealed internal handle, ensuring the door leaf can open fully with ease.

• Energy-Efficient & Eco-Friendly: The solid, heavy-duty door body allows fast opening/closing, minimizes air circulation, and effectively prevents dust and cold air infiltration. Maintains constant humidity and temperature in controlled environments.

• Barrier-Free Accessibility: Humanized design ensures safe, convenient passage for patients, medical staff, and carts, enhancing efficiency in healthcare environments.

Technical Specifications

• Door Weight:

  • Single door: 1 × 100 kg

  • Double door: 2 × 100 kg

• Clear Opening Width:

  • Single door: 900 – 1500 mm

  • Double door: 1200 – 3350 mm

• Opening Speed: 150 – 500 mm/s (adjustable)

• Closing Speed: 150 – 500 mm/s (adjustable)

• Hold-Open Time: 0 – 20 s (adjustable)

• Sealing Force: 30 N

• Manual Push Force: < 30 N

• Total Power Consumption: < 100 W

• Airtightness Class: Grade 8

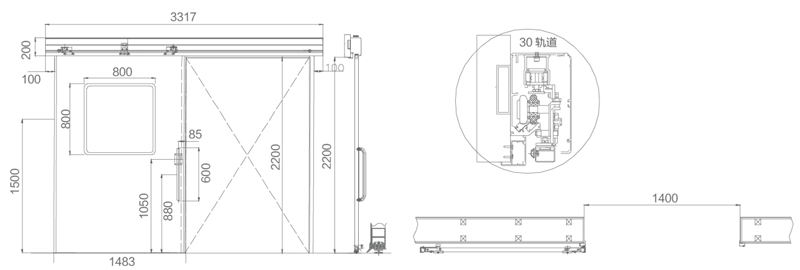

Structure
