1. Product Overview

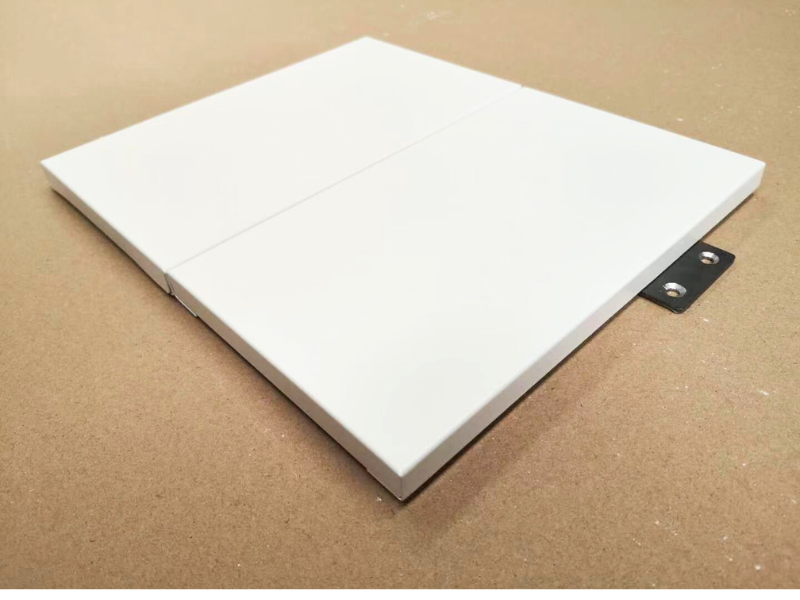

The seamless joint steel composite wall panel is a high-strength modular wall system composed of galvanized steel surface panels laminated with inorganic core materials. Installed using concealed brackets and keel framing, the panels are tightly aligned with natural narrow joint lines, providing a continuous, seamless architectural wall effect without exposed trims. With excellent structural integrity and modern aesthetics, this system is widely used in medical facilities, cleanrooms, precision manufacturing environments, and industrial projects.
2. Product Specifications
| Item | Specification |
|---|---|
| Total Thickness | 12.5mm – 13mm |
| Surface Material | Galvanized steel sheet (0.8–1.0mm thickness, customizable) |

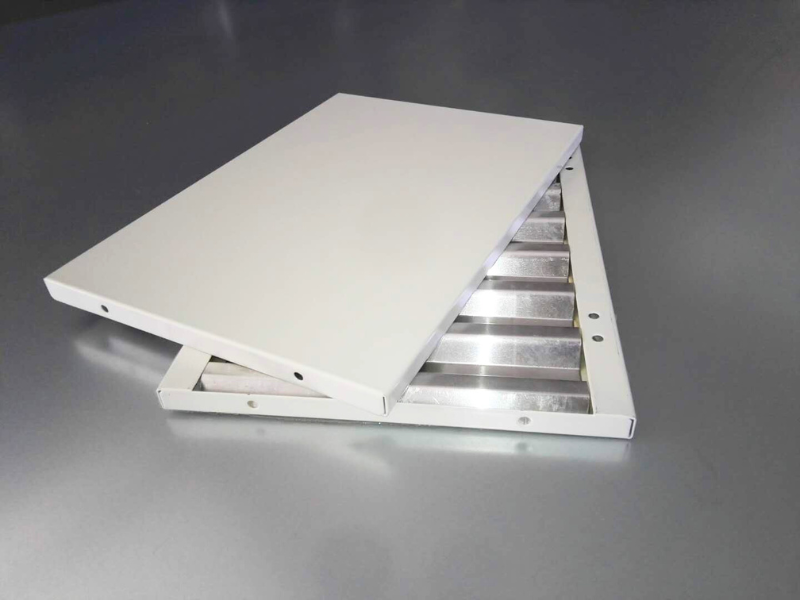

| Core Material | 12mm gypsum board / aluminum corrugated core (optional) |
| Surface Finish | Electrostatic powder coating / PVC wood grain laminate |
| Standard Width | 1187mm (custom sizes available) |
| Length Options | 2.4m – 3m (custom height fabrication available) |
| Installation Method | Concealed bracket fixation to steel/aluminum keel |
| Joint Type | Natural tight seam (seamless joint appearance) |
| Substructure System | Galvanized steel keel / aluminum alloy keel |
| Optional Accessories | Internal/external corner trims, skirting lines, edge closures |
3. Product Advantages
-
Seamless appearance without exposed trims
Natural tight seams between panels create a clean, continuous wall surface with modern architectural aesthetics. -
Enhanced structural strength
Upgraded 0.8–1.0mm steel facing ensures superior impact resistance and long-term durability. -
Concealed installation system
Panel fixation is achieved through hidden brackets, with no visible screws or connections on the surface. -
High flatness and clean visual lines
Composite panel construction ensures precise alignment and a unified visual effect. -
Durable and low maintenance
Resistant to moisture, deformation, and surface wear, suitable for long-term engineering applications. -
Flexible system integration
Supports customized openings for electrical wiring, inspection hatches, control interfaces, and other functional modules.
4. Application Areas
This system is widely applied in interior wall projects requiring clean performance, durability, and architectural precision, including:
-

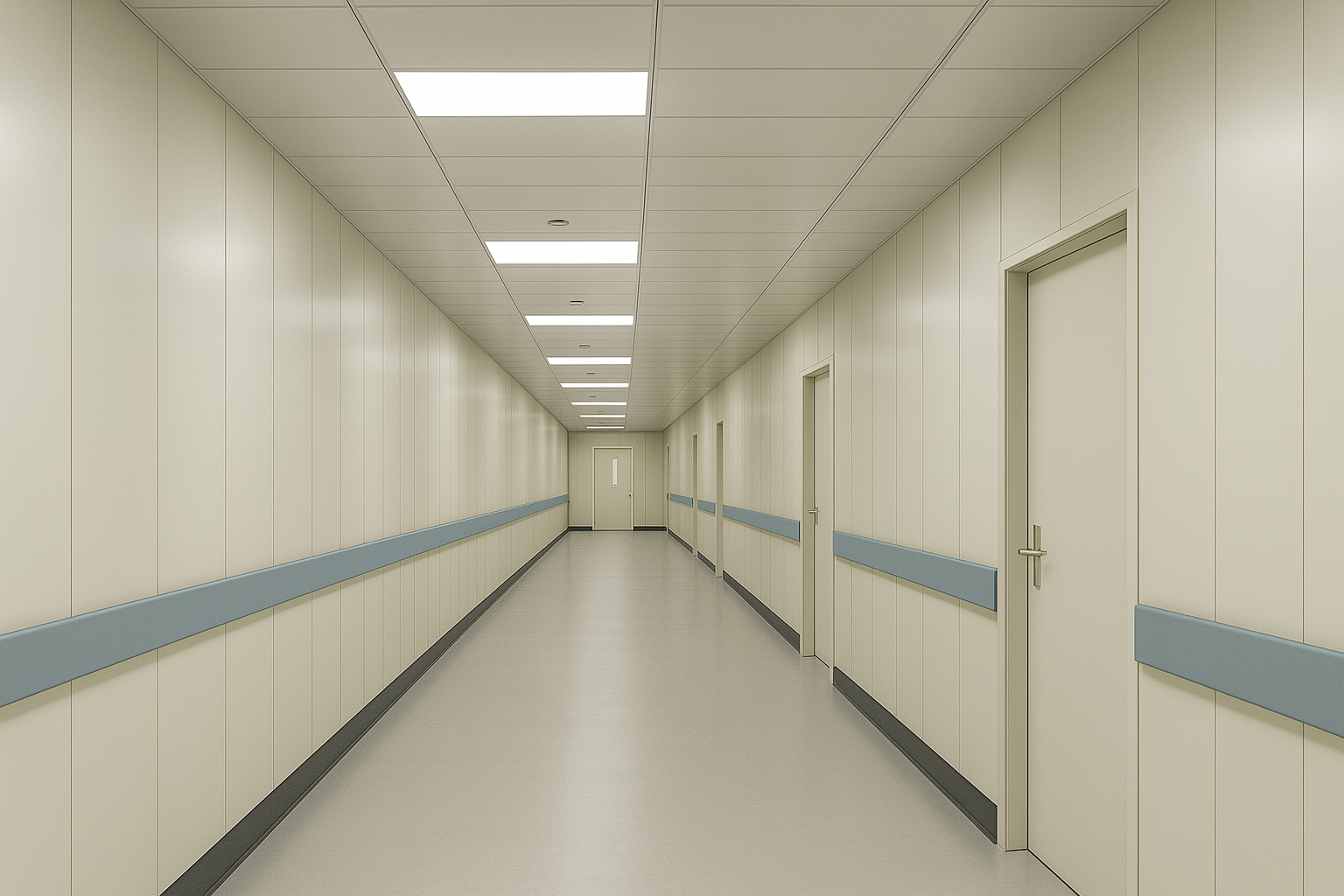

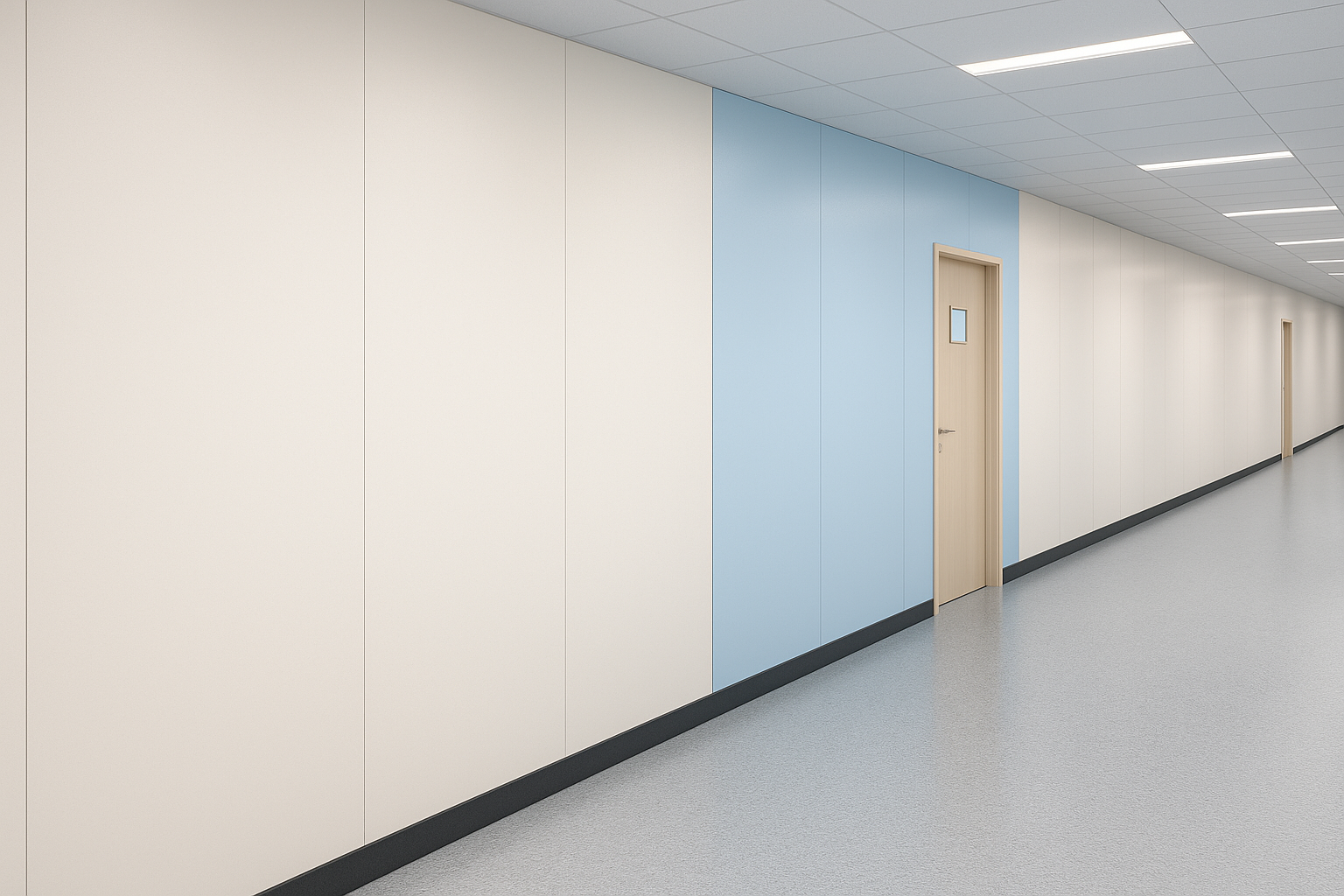

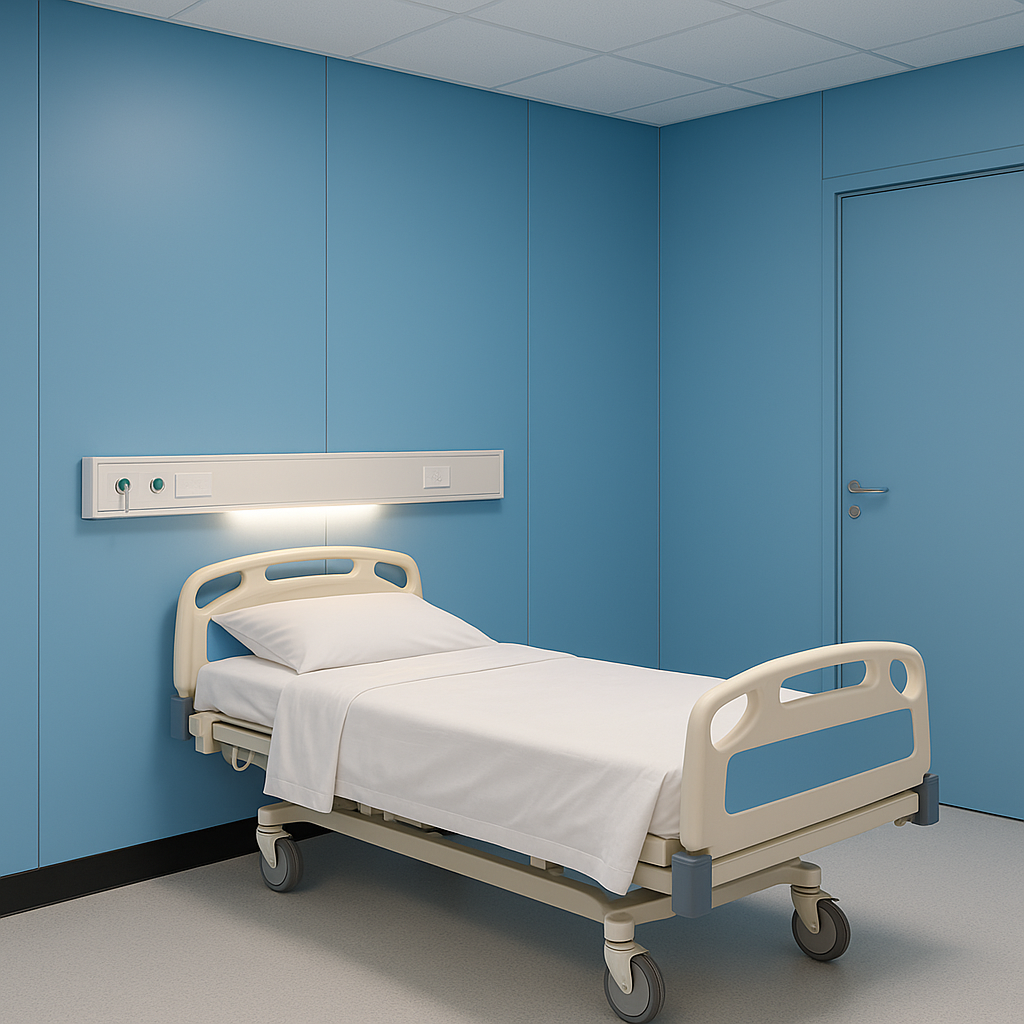

Hospital corridors, treatment areas, and technical departments
-
Biopharmaceutical cleanrooms and processing areas
-
Food production facilities and medical device workshops
-
Electronics and semiconductor manufacturing clean environments
-
Laboratories and R&D centers
-
Data centers, control rooms, and industrial modular wall systems
