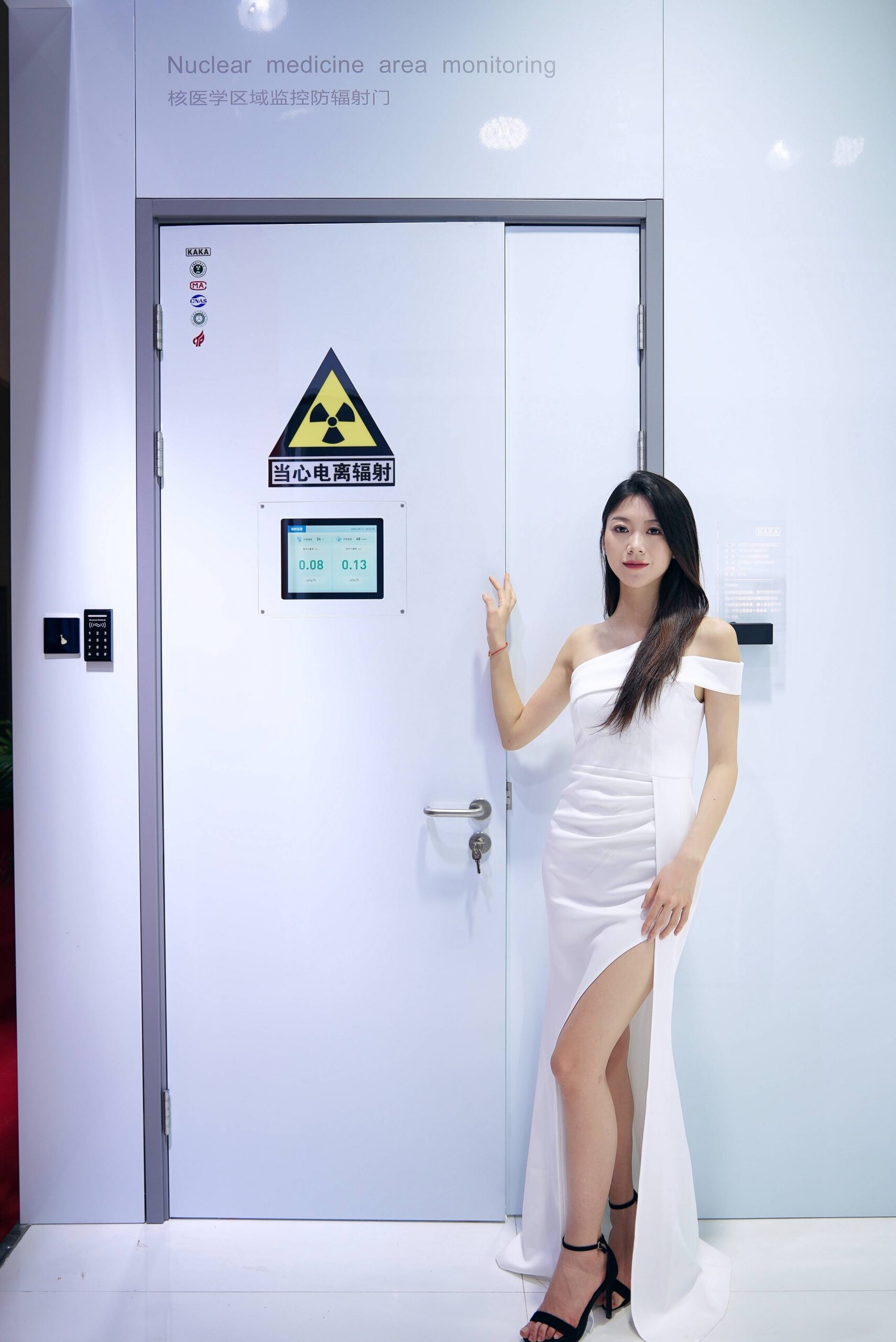

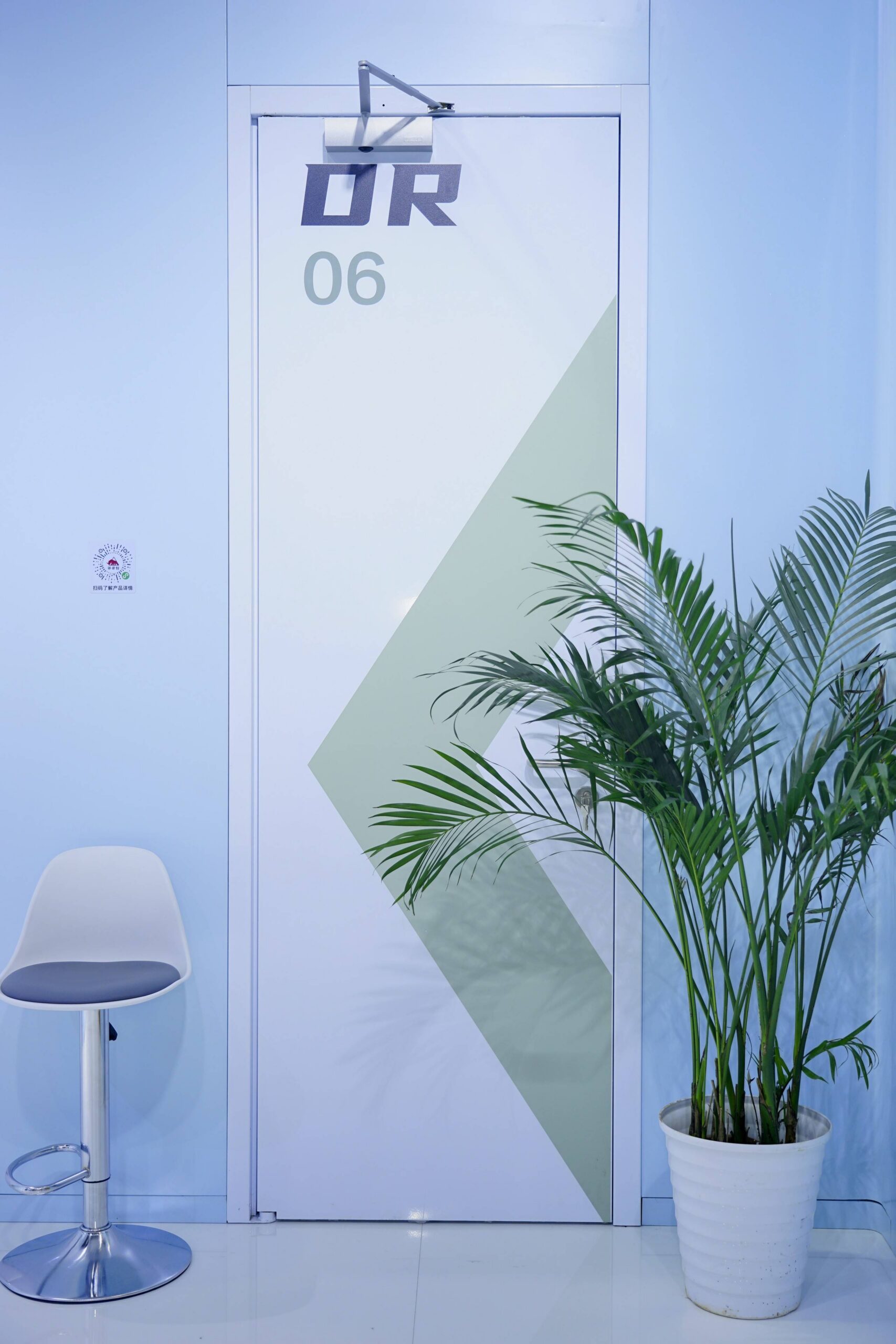

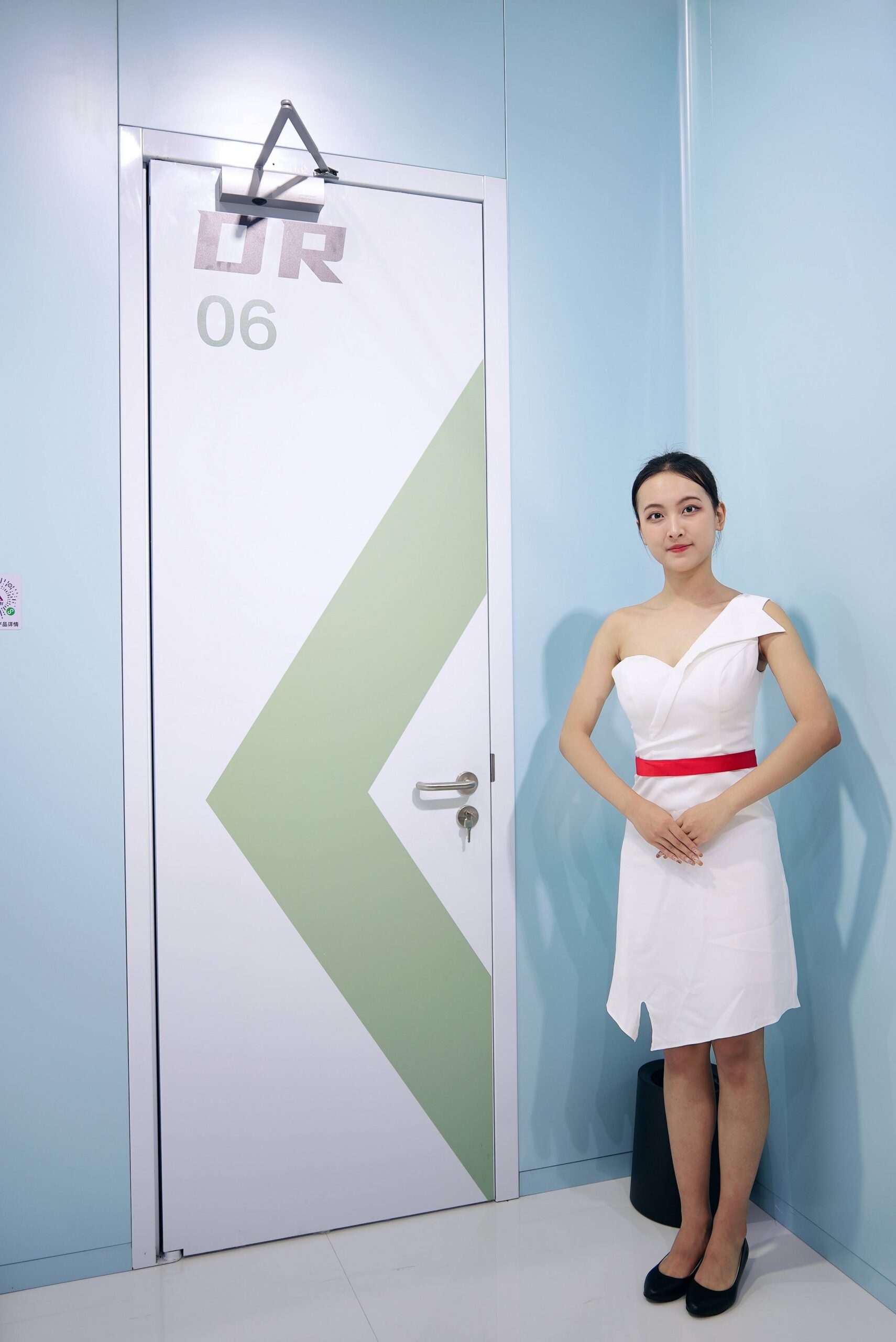

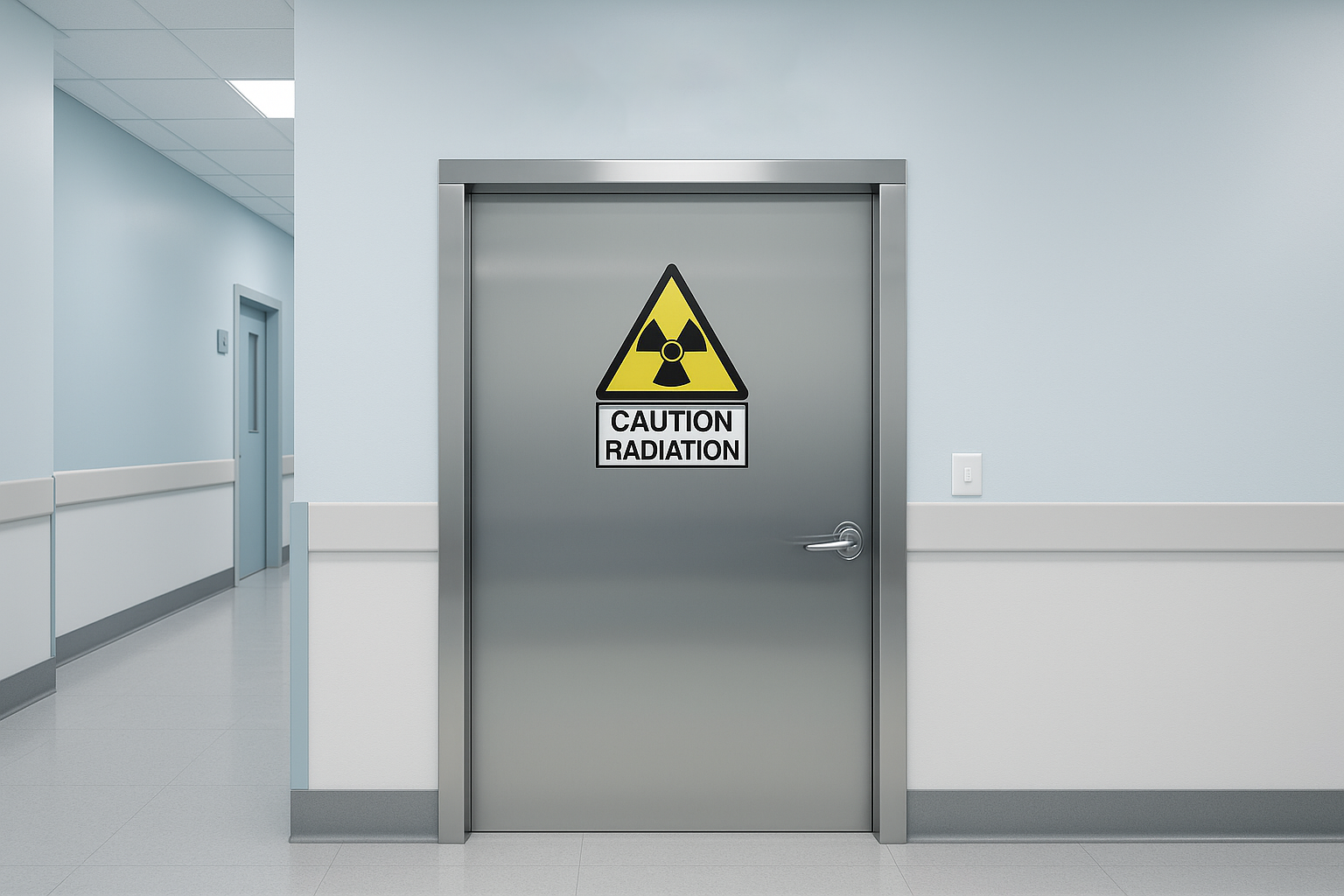

Single-Leaf X-Ray Radiation Shielding Swing Door

Product Overview

The single-leaf X-ray radiation shielding swing door is specially designed for X-ray rooms, medical imaging, radiotherapy, nuclear medicine, and interventional treatment departments. It effectively blocks X-ray leakage, ensuring the safety of medical staff and patients. The door leaf panels adopt an interlocking structure with no edge covers, welding points, or exposed screws, presenting a clean, modern, and hygienic appearance.

Product Features

• Door Leaf Steel Plate Thickness: T0.8 mm galvanized steel or stainless steel

• Door Frame Steel Plate Thickness: T1.6 mm galvanized steel or stainless steel

• Internal Core: High-strength fire-resistant honeycomb paper board

• Shielding Material: 99.9% pure lead plate, configurable with 2–8 lead equivalents according to protection requirements

• Door Leaf Thickness: T50 mm

• Sealing System: Frame grooves fitted with high-elastic silicone sealing strips for superior airtightness

• Hinges: Heavy-duty stainless steel hinges for stable performance

• Acoustic Insulation: Rw = 45 dB (complies with GB/T 8485-2008)

• Impact Resistance: Complies with GB/T 20909-2007

• Surface Finish: High-voltage electrostatic powder coating or stainless steel finish

• Optional Vision Panel: Lead glass observation window

• Opening Mode: Manual / Automatic

Product Functions

• Effectively blocks X-ray leakage, protecting staff and patients

• Seamless structure with interlocking panels, easy to clean and maintain

• Excellent sound insulation, fire resistance, and impact resistance

Applications

• X-ray rooms

• Medical imaging departments

• Radiotherapy units

• Nuclear medicine departments

• Interventional treatment rooms

Product Type

• Single-Leaf Swing Door
