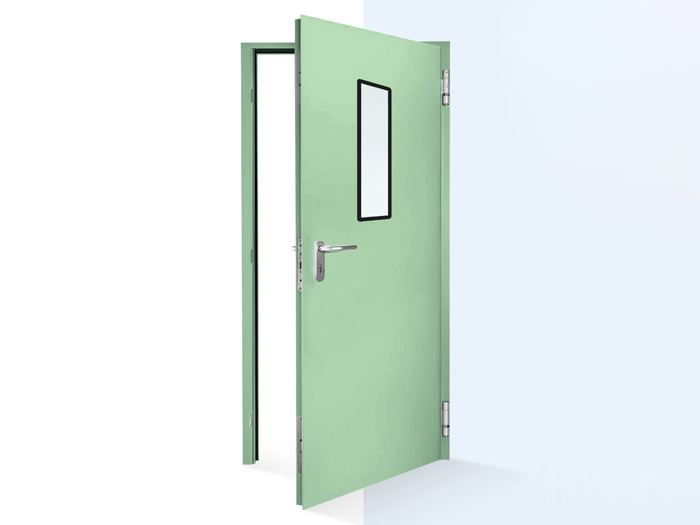

Single steel door

Product Features

• Application: Suitable for hospital consulting rooms, wards, toilets, and other healthcare office areas.

• Material & Finish: Constructed with eco-friendly galvanized steel plate, featuring an electrostatic powder-coated surface that is stain-resistant, environmentally friendly, and easy to maintain. The internal core is filled with high-strength paper honeycomb, providing safety, sound insulation, antibacterial performance, and corrosion resistance.

• Design: Door leaf with single-side seam joint, equipped with an aluminum alloy vision panel. The door frame features a seamless surface finish for a clean, elegant appearance and easy cleaning.

• Hardware: High-quality imported hardware with antibacterial electrostatic coating, designed to reduce bacterial growth.

Technical Specifications

• Door Type: Single-leaf opening

• Max Size: 1300 × 3000 mm

• Door Leaf Thickness: 40–60 mm

• Door Frame Thickness: 100–600 mm

• Door Leaf Material Options:

  • 0.8 mm galvanized steel plate

  • 0.8 mm wood grain steel plate

  • 0.8 mm stainless steel plate

• Door Frame Material Options:

  • 1.5 mm galvanized steel plate

  • 1.5 mm wood grain steel plate

  • 1.2 mm stainless steel plate

• Surface Finish Options:

  • Electrostatic powder coating

  • Surface painting

  • PVC thermal coating

• Core Filling Options:

  • High-strength aluminum honeycomb

  • High-strength paper honeycomb

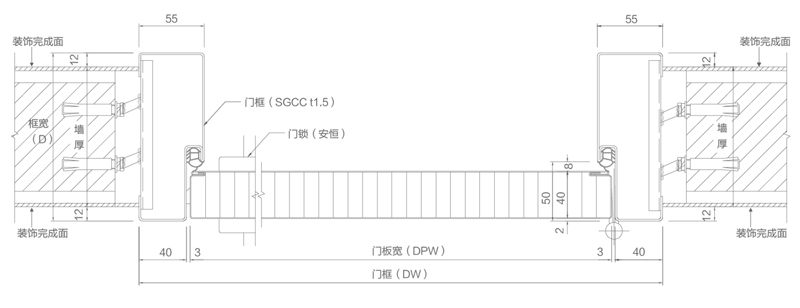

■ Structure diagram
